WoodMines Octagonal Timber Pavilion

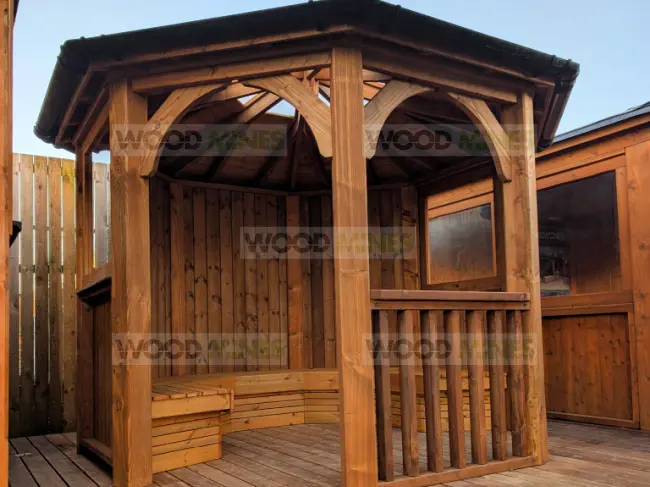

Introducing our handcrafted Octagonal Timber Pavilion-a premium garden structure designed and built by WoodMines for customers looking for exceptional craftsmanship, strength, and a standout feature for their outdoor space.
Built using superior C24 graded spruce throughout the main framework, this pavilion combines traditional timber framing techniques with heavy-duty construction methods to create a structure that is both visually striking and built to last.

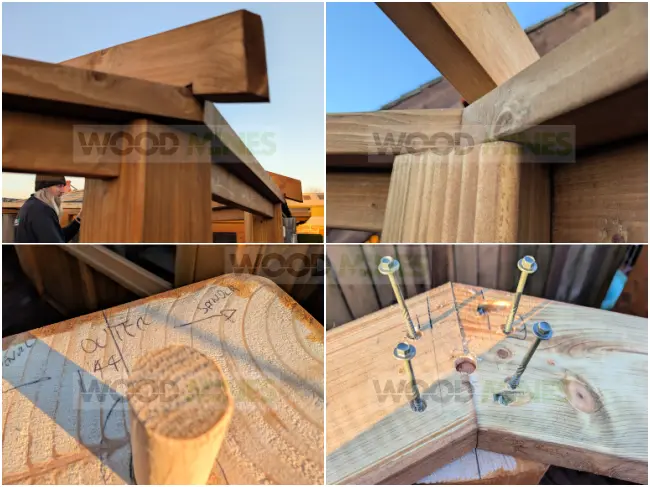

The pavilion features substantial 150mm posts and heavy-duty hex bolts. The roof structure is pre-cut & built in the workshop before delivery as a kit, to create secure, precision-engineered joints throughout.

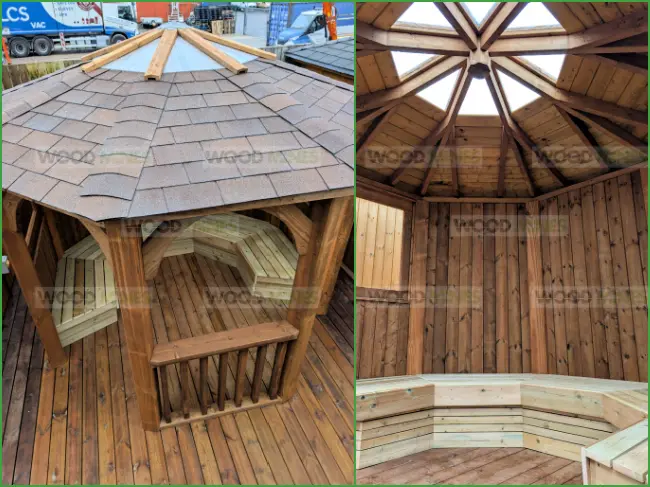

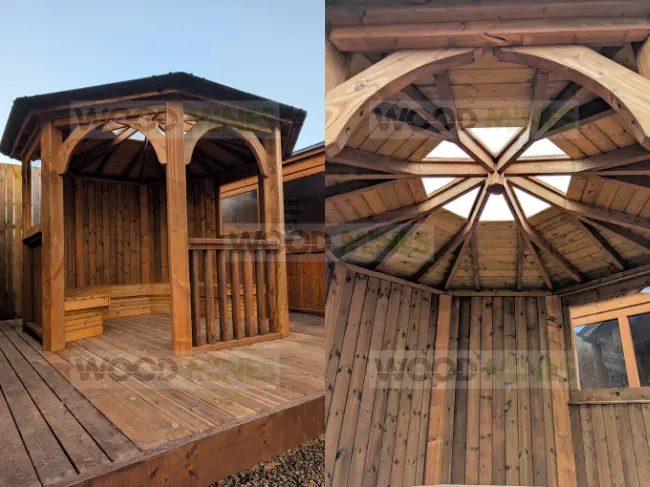

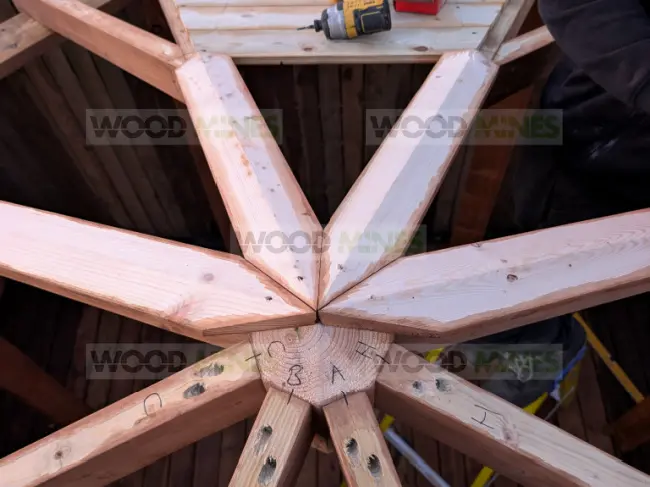

At the heart of the roof structure is our exclusive WoodMines designed king post feature, creating a beautiful architectural focal point beneath the lantern centre roof design. The roof frame is pre-built and test-fitted prior to dispatch to ensure a smooth installation process.
The roof is finished with premium-grade shingles over thick pressure-treated redwood tongue and groove roof boards, providing both durability and a high-end traditional appearance.

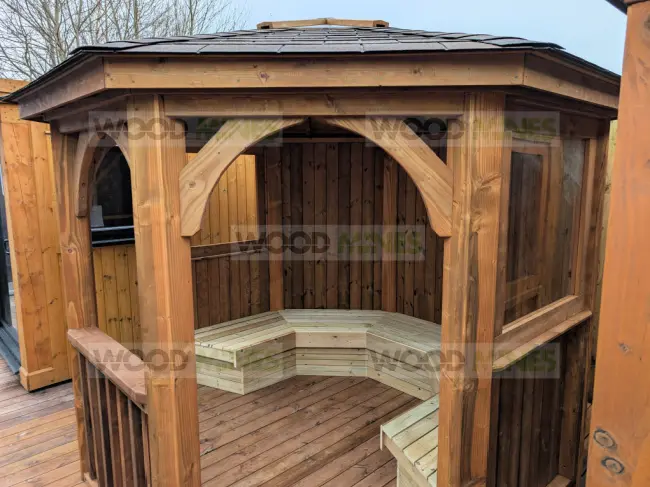

Every detail has been considered, including our substantial curved wind braces manufactured from 195mm x 45mm timber, adding both structural support and elegant visual detail. Smooth easy-edge rafters complete the refined finish of the pavilion.
Optional handcrafted timber seating is available as an add-on, specifically designed by WoodMines to complement the octagonal shape and overall character of the structure.
Features
- Handcrafted octagonal timber pavilion
- Heavy-duty 150mm structural posts
- Superior C24 graded spruce framework
- WoodMines designed king post roof feature
- Lantern centre roof design-Can be supplied with or without the lantern feature
- x2no Full Height gazebo wall built to 1990mm high - T&G (20mm thick) - Half Height T&G plus glazed top section @4mm thick acrylic
- x1no Full Height gazebo wall built to 1990mm high - T&G (20mm thick)
- x1no spindle panel built to 900mm high (20mm thick)
- x2no entrances
- Pre-built and test-fitted roof structure
- Pressure-treated redwood tongue & groove roof boards
- Premium-grade shingles
- Heavy-duty hex bolt fixings
- Thick curved wind braces-195mm x 45mm
- Smooth easy-edge rafters
- Optional handcrafted timber seating available
- Bespoke sizes available on request

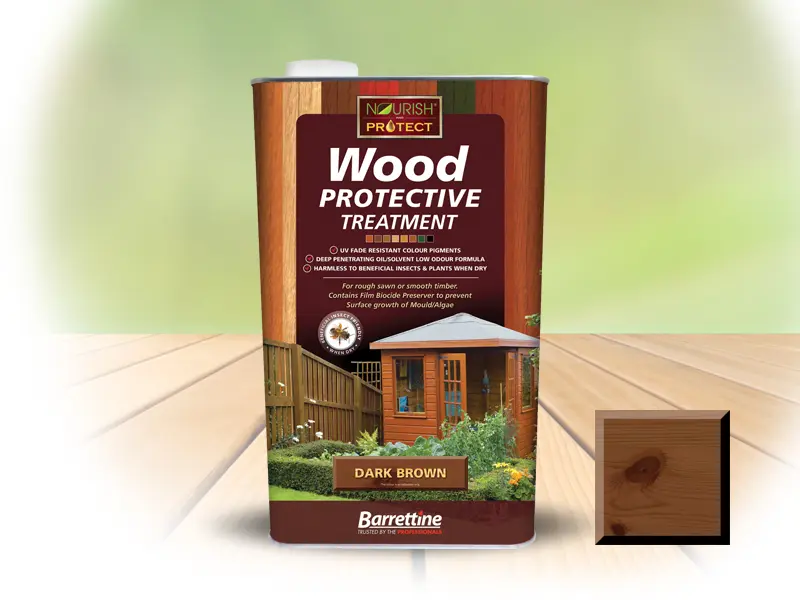

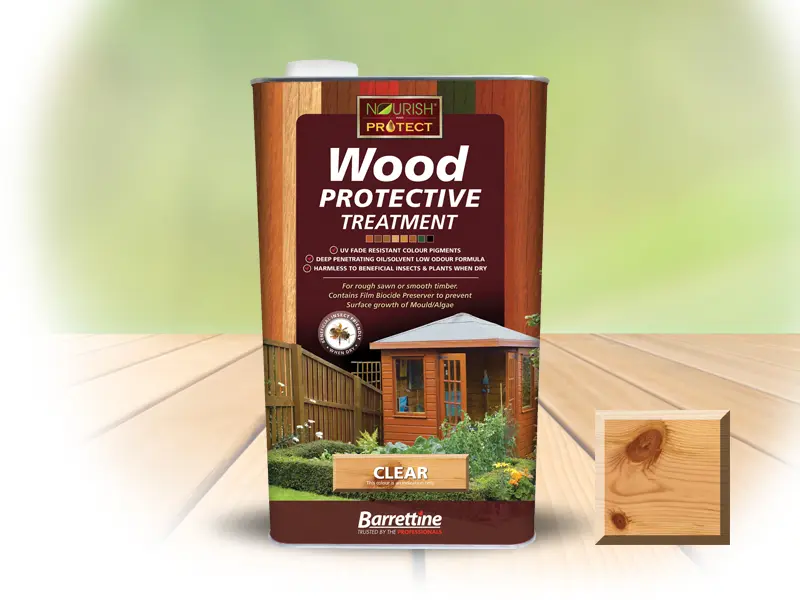

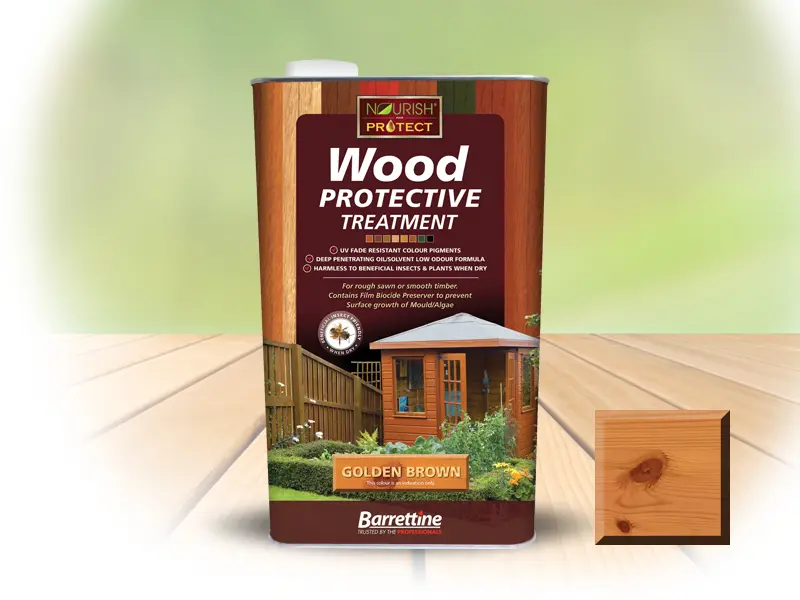

- Please note that the pavilion has been treated with a wood treatment colour-these can be purchased separately for self application.
A true statement piece for any garden, our Octagonal Timber Pavilion has been designed to offer both luxury aesthetics and long-term structural quality.
Professional-Grade Shingles
Long Lasting Roof Structures
Heavy Duty Engineering
We build to Last
Clear Structural Process
We craft long-lasting garden structures
OCTAGONAL GARDEN PAVILION
GAZEBO SIZES:
The Gazebo sizes quoted are all the external dimension of the posts. The internal dimensions are the external measurements minus 2 x the post thickness.
The roof covering overhangs at least 17cm on all projections.
Please note, the images may not be the listing size.
TIMBER DIMENSIONS:
Main roof frame: 150 x 50mm
Rafters: 100 x 50mm
Uprights: A massive 150mm x 150mm are supplied as standard. They measure 2.4m long, if fitted at full height the head room will be 2.27 m.
Wind braces cut from 195mm x 45mm treated timber, a large curve is cut into this.
CLEAR ROOF SECTION:
The clear roof section at the heart of this modern garden gazebo is constructed from clear acrylic, 4mm thick which is nine times stronger than glass. The clear roof panels are cut and drilled ready for you to fit. They offer a clear view at the centre of the gazebo.

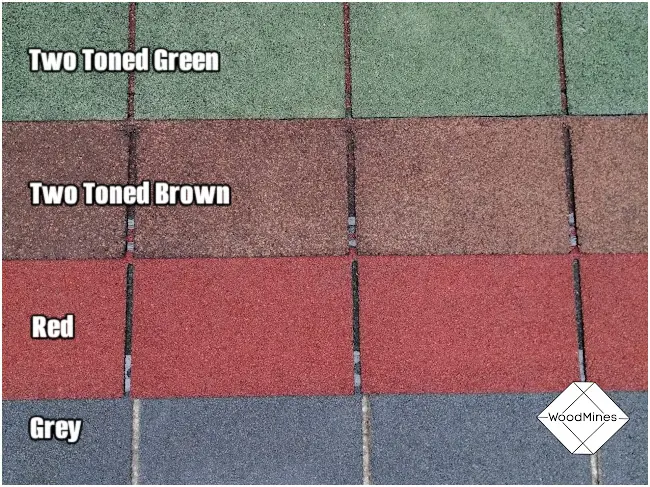

PROFESSIONAL GRADE FELT SHINGLES:
The Octagonal Gazebo, with the pro-grade shingle roof option, is supplied with pressure treated tongue and groove boarding so looks as good on the inside as it does on the outside.
Benefits: Durability, Lightweight, Versatility, Ease of fixing, Attractive appearance, Virtually maintenance free, BBA Certification 15 year material guarantee.
Details: A durable, flexible and proven shingle tile strip manufactured from specially formulated bitumen asphalt, reinforced with a pre-impregnated glass fibre and finished with resilient and aesthetically pleasing coloured ceramicised granules.
